1.1 Overview
Brand: Etross or OEM Brand
Model no.: FWT-8848 GSM/PTSN

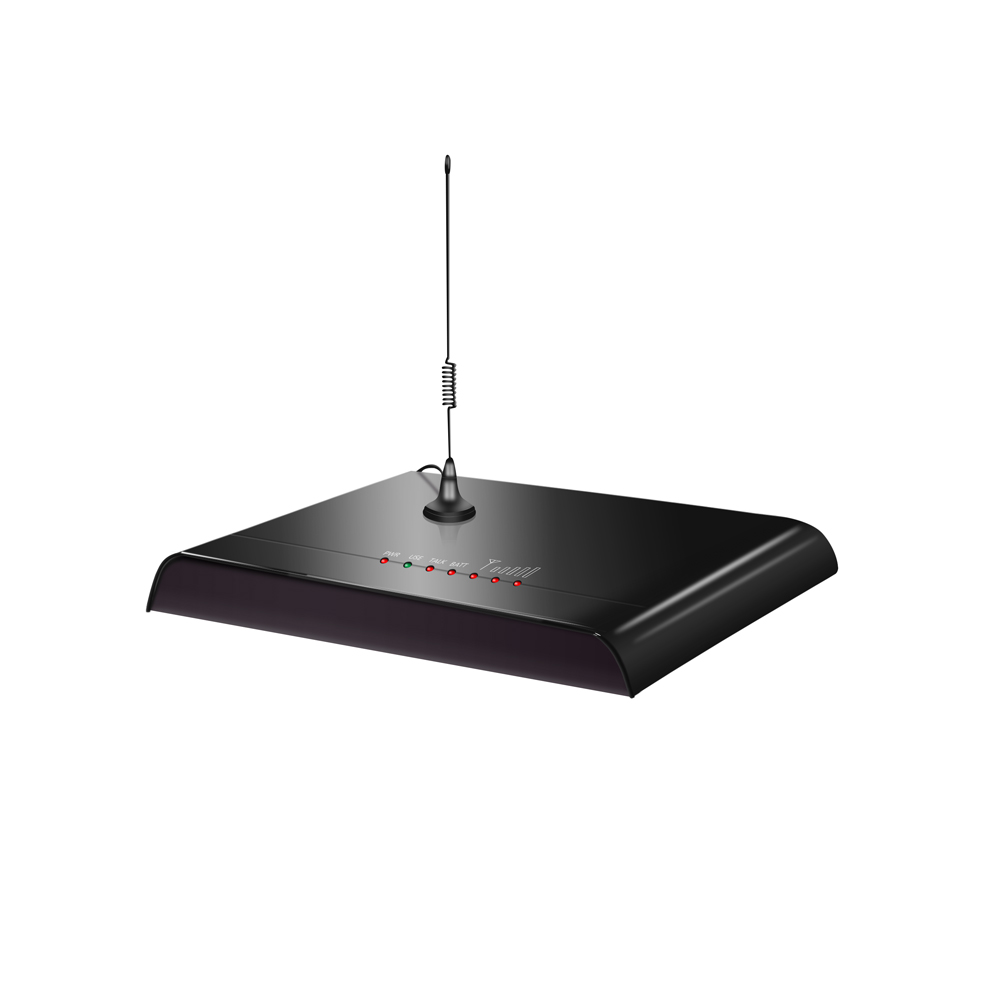

Product name: GSM/PSTN Fixed Wireless Terminal with LCR
Frequencies: Dual band:GSM 900/1800 Mhz,Quadband: GSM 850/900/1800/1900 Mhz
1.2 Main features
1) Auto-select economic route (Low cost routing-LCR function)
2) GSM isn't ready, call will be forced to dial out from PSTN.
3) When not connecting to PSTN line, GSM will provide the forced dial-out function
4) )Simple to install and easy to maintain
5) Steady module and reliable design ensures good performance
6) Provides optimized circuit directly connecting the exchange device for extensions
7) Compatible to most telephones, PBX device
8) Strong signals with high gain antenna
9) Attractive plastic casing
10) SIM card supported (1.8V, 3V)
11) Caller ID display
12) Provides reversal polarity signal for metering
13) No noise and clear voice
14) Suitable for wide voltage range and low power consumption
15) Suitable for all kinds of weather and environment
16) RJ-11 ports (1 fxo for pstn line and 1 fxs port)
17) Locking PIN / network (optional)
1.3 Specifications
1) Air interface standard: GSM 900 / 1,800MHz phase 2+
2) Frequency ranges: a) GSM 900: i) Transmission: 890 ~ 915MHz ii) Reception: 935 ~ 960MHz b) GSM 1800: i) Transmission: 1,710 ~ 1,785MHz ii) Reception: 1,805 ~ 1,880MHz
3) Channel space: 200kHz
4) User line, bell signal: in line with GB/T15279
5) Max power: 0.25W / 0.5W
6) Consumption: a) Immobility: less than 25mAh b) Transmission: less than 400mAh
7) Sensitivity: -105dB
8) Dial tone frequency: 450MHz (standard)
9) Surrounding temperature: -10°C ~ +40°C
10) Relative humidity: 45% ~ 90% (without frost)
11) Atmosphere pressure: 86 ~ 106KPa
12) Environment noise: <60dB
13) Antenna amplifying: 3.5dB (omni directional), 12dB (certain direction /Chosen direction)
14) AC power: DC 10V - 20V
15) Input: AC100 - 230V, 50 / 60Hz
16) Output: 12V 1A
17) Switching type / transformer type AC adapter (optional)
18) Connector of power: US or European type
19) Dimensions (L x W x H) (average): 185 x 135 x 22mm
20) Weight: A) FWT: 400g B) Full set with AC adapter, antenna and box: 800g
21) Colors: White/grey/black (optional)
22) Connection mode: RJ-11 phone sockets
23) Antenna connection: SMA antenna connection
1.4 Standard Component
Item | Qty | Remarks |
GSM FWT 8848PSTN | 1 | |
User's Manual | 1 | Printed |
| Antenna | 1 | 3 metre antenna |
Power Supply | 1 | Input: AC100 - 230V, 50 / 60Hz , Output: 12V 1A |
Packing
Inner box MEAS | |
G.W./unit | 0.75kg |
Carton MEAS | 55*34.5*32.5cm |
G.W. | 16kg |
PCS/CTN | 20pcs |
