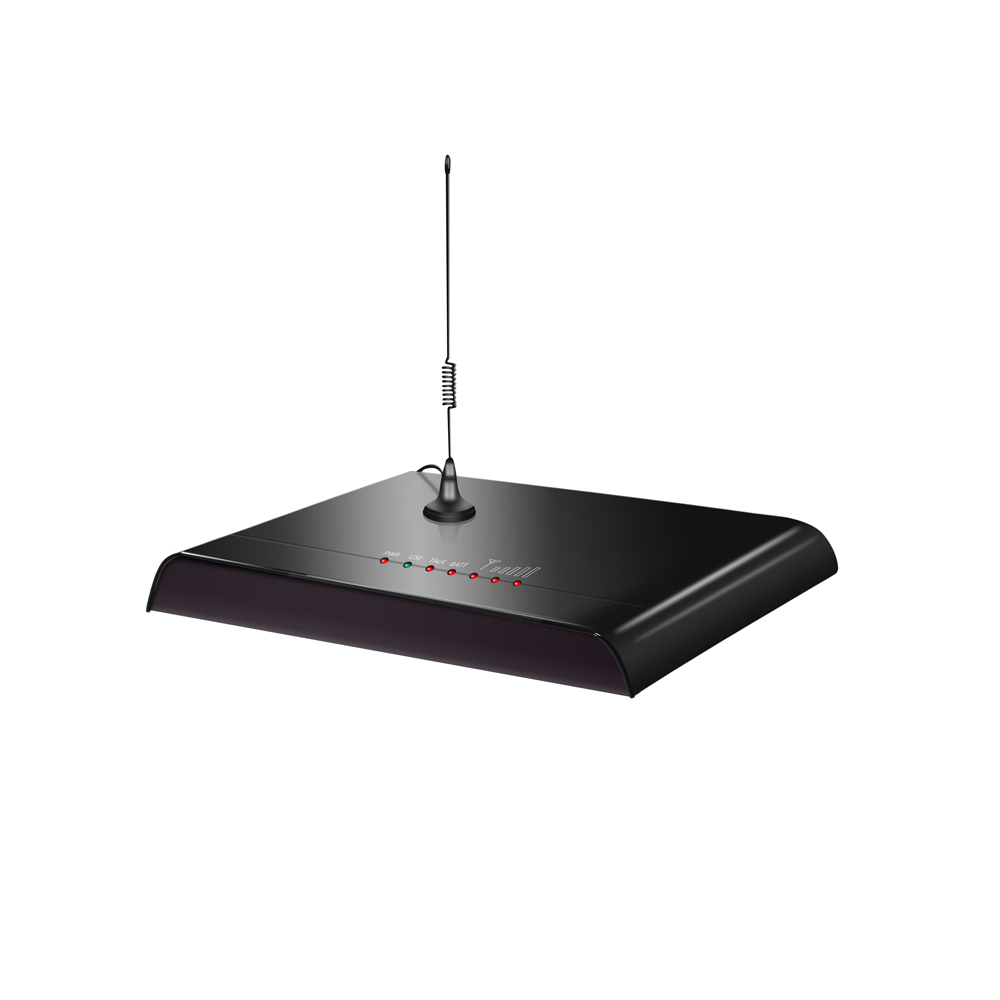

GSM G3 FAX Terminal

Product Name
GSM G3 FAX Terminal
Network
N/A
Size
N/A cm
Weight
0.00 kg
HS Code
Description
No detail...

1.1 Overview

Brand: Etross or OEM Brand

Model no.: FWT-8848

Product name: GSM G3 FAX Terminal

Frequencies:GSM 900/1800 MHz dual band; GSM 850/1900MHz,900/1800Mhz quad band



1.2 Main features

1) GSM G3 fax terminal supports voice and fax function;

2) Employ siemens TC35i (dual band),/MC55i (quad band) module to make;

3) Can send and serive fax by connecting to an analogue fax machine;

4) Compatiable to most telephones, PBX devices and analogue fax machines;

5) Connect to Alam systems to realize wireless alarm ( for security use )

6) Strong signals with high gain antenna

7) Attractive plastic casing

8) SIM card supported (1.8V, 3V)

9) DTMF CLIP ( Caller ID display)

10) Provides reversal polarity signal for billing.

11) No noise and clear voice

12) Suitable for wide voltage range and low power consumption

13) Suitable for all kinds of weather and environment

14) 2 RJ-11 ports (both can connect to fax machine or telephone set);

15) Locking PIN / network (optional)



1.3 Specifications

1) Air interface: GSM 900 / 1,800MHz or Quadband (850/900/1800/1900Mhz)

2) External in interface:

    The power supply interface: POWER/DC12V

    Outside phone interface:RJ11 (Phone or fax)

    The antenna interface: SMA (Male) 1.8V, 3V SIM interface

    The data Service interface: USB port (Optional)

3) Power adaptor:

    Input voltage: AC90-260V/ 50HZ

    Output current: 1.2a

4) Antenna:

    Frequency Band: 890-960 NHz / 1710-1880 MHz

    Gain: 2.5dBi

    Wave ratio: <1.5

    Input resistance: 50ohm.

    Polarize method: perpendicularity polarizes

5) Size: (LxWxH): 420mmX 220mm X 70mm (not include the antenna)

6) Weight: 0.8kg (including the antenna, battery, power adaptor).



1.4 Standard Component

Item

Qty

Remarks

GSM FWT 8848 G3 FAX

1


User's Manual

1

Printed

Antenna

1

3 metre antenna

Power Supply

1

 Input: AC90 - 260V, 50Hz , Output: 1.2A


Packing:

Inner box MEAS


G.W./unit

 0.80kg

Carton MEAS

59*36*34cm

G.W.

16kg

PCS/CTN

20pcs
