1.1 Overview

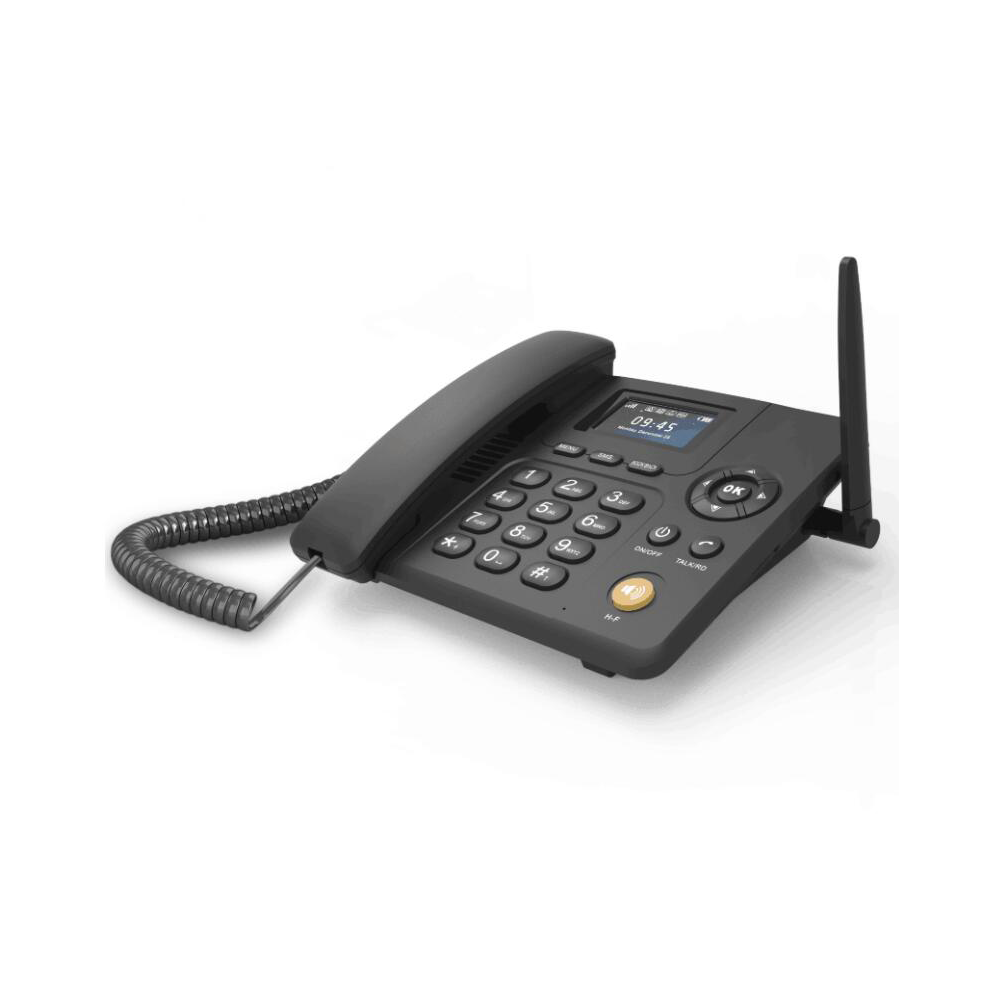

WCDMA FWP 6688 is a 3G: 900/2100Mhz or 850/1900Mhz (Optional) and 2G
850/900/1800/1900Mhz quadband fixed wireless phone, or we call it as 3G
desktop phone,Also it supports SMS and FM radio , It is designed mainly for the
situations where the traditional landline infrastructure is not available , a cheap
and flexible alternative for your voice communicaion.also FM radion support.
1.2 Main features
1. Support 3G 900/2100Mhz, 850/1900Mhz Optional
2G 850/900/1800/1900Mhz GSM Quadband
2. Caller ID
3. Dot-matrixed display
4. Multi-languages selection & customized ,Spanish,English, Chinese, Arabic, Russian etc.
5. SMS function
6. IP No. Setting
7. Call in / Call out /Call divert/ Call waiting/ three-way conference call
8. Lock up function: Keypad, SIM card, network.
9. Local No. / direct No. / limited No. Setting
10. Speed dialing
11. Redial
12. Save more than 100 SMS on the phone
13. 7-level headphone volume and silence adjustable
14. Speaker Phone
15. Low-power indicator
16. Storage 20 missed call or received calls and the last ten dialed number
17. Voice mail function
18. Packing Size (mm): 220*160*53
19. Support STK1114
20. Emergency call: At off-hook or hand-free state, can dial emergency number without SIM card inserted.
21, FM Radio support
1.3 Specifications
1. Operating Freq.: GSM900-1800Mhz/850-1900Mhz Quadband
2. Normal operation temperature: -30 ---70
Restricted operation temperature: -30 ---80
Storage temperature: -40 ---85
3. Environment noise: Below 60dB(A)
4. Support SIM Card 1.8V/ 3V
5. Channel interval: 200KHz
6. Receive sensitivity: <-100dBm
7. Relative humidity: 45%~95%
8. Atmosphere pressure: 86~106Kpa
9. AC power voltage: 220V?à22V, Freq.: 50Hz
10. GPRS multi-slot class 10/8
GPRS mobile station class B
11. Compliant to GSM phase 2/2+
-Class 4(2W@850/900MHz)
-Class 1(1W@1800/1900MHz)
12. Phone: DC 5V 1000mA
13. Battery: 3, 7V 100mAH Li-ion battery
1.4 Packing List
WCDMA FWP 6688 Host | 1 piece |
Power supply | 1 piece |
Battery 3.7v 1000mAH | 1 piece |
User's manual | 1 piece |
Handset | 1 piece |
TNC antenna (Optional) | 1 piec |
HS Code: 8517129000
